About us
The IMES GmbH in Germany, is the leading specialist in the field of combustion engine cylinder pressure and data acquisition systems.
In times where emission regulations continue to tighten, optimised engine performance to reduce NOx and CO2 is of paramount importance. Our high-quality products represent reliability, robustness, durability and long-term accuracy.
The sophisticated sensors, electronic indicators and combustion monitoring systems are employed on a wide range of diesel-, gas- and dual-fuel engines, on ships and locomotives and in power cogeneration plants and pipeline compressor stations all around the world.
Address
Dr.-Herbert-Kittel-Str.2
87600 Kaufbeuren
Germany
E-mail: info@imes.de
Phone: +49 8341 9661730
Internet: www.imes.de
6-8, Efklias Str.
18538 Piraeus
Greece
E-mail: info@lyssos.com
Phone: +30 210 7106060
Internet: www.lyssos.com
Products & Services
Our cylinder pressure sensors, electronic indicators and combustion monitoring systems offer solutions for engine monitoring and diagnosis for the maritime market.
Continuous online cylinder pressure measurement for advanced engine monitoring and diagnosis, and as an input for closed-loop control systems on gas, diesel- and dual-fuel- engines
Periodic cylinder pressure monitoring by engine operators on propulsion engines, generator sets and compressor sets in ships, power plants and compressor stations
On-site cylinder pressure measurement for research, development, trouble- shooting and periodic cylinder balancing on large engines
All our sensors offer a digital electronic with event storing. They are designed for a minimum of 16,000 operating hours and they have a very good thermodynamic performance. Our products received Marine Type Approval from all significant international classification societies such as Bureau Veritas, DNV, ABS, Lloyd’s Register, Korean Register, RINA and Class NK and also SGS certification for the use in hazardous areas.

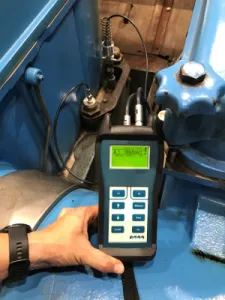

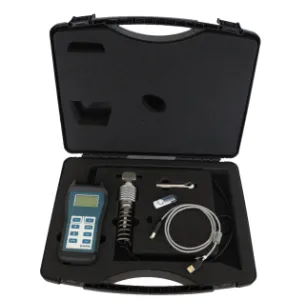

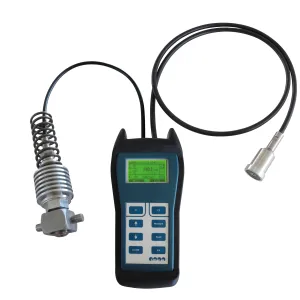

EPM Next Generation
The new generation of the successful electronic handheld device EPM offers one common hardware for all EPM types. This enables a simple upgrade from peak pressure indicator EPM-Peak up tp engine analyser EPM-XPplus-vibro.
The measurements the user can perform are depending on the EPM type he is using. The collected data of all EPM types can be displayed and evaluated from the EPM evaluation software. Depending on the instrument peak pressure, pressure- and combustion behavior, performance data as well as valve timing will be evaluated and analysed.

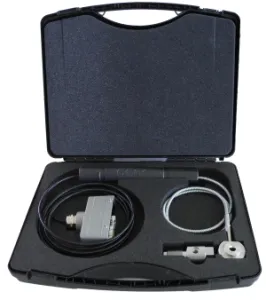

TCS-01CA PMI
TCS-01CA®-PMI is a two-stroke combustion sensor for continuous measurement of cylinder pressure on two-stroke diesel- and dual-fuel engines (24 hours per day / 365 days per year).
It is specifically designed for the application on electronically controlled engines and suitable as replacement for the standard pressure sensor of PMI-auto-tuning-systems. The connector is pin compatible to PMI systems and the user-friendly plug-and-play-system enables an easy installation.

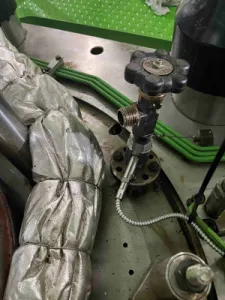

The sensor is installed in a special designed adaptor between cylinder cover and indicator cock, as this reduces the build-up of combustion deposit at the sensor membrane significantly.
TCS-01CA®-PMI is a very robust sensor and the closed face of the sensor reduces the risk of sooting during long-time operation.
Marine Type Approval:
Bureau Veritas, Class NK, DNV, Korean Register, Lloyd’s Register and RINA.

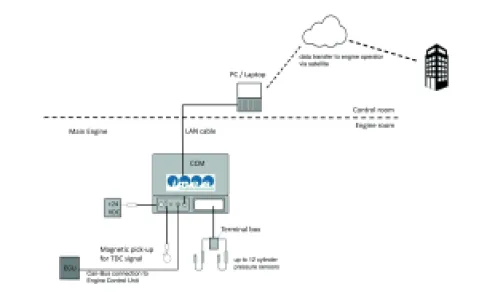

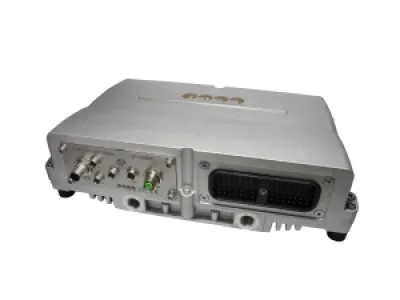

CCM Combustion Control Module
The CCM is an easy to use plug and play system which enables real time data acquisition of cylinder pressure on gas-, marine diesel- and future fuels engines. Data can be recorded from up to 24 cylinders for closed loop control applications and to diagnose malfunctions or to assist in the setting and optimising of engine parameters e.g. balancing cylinder.
CCM evaluates every combustion cycle on every cylinder for to calculate key parameters engine builders need to implement cylinder pressure based control on engines. Its quick data acquisition and recent evaluation software enables extensive analysis about engine performance.
Main functions:
Knock detection
Misfire detection
Calculation of thermodynamic parameters
Peak pressure
IMEP, IPOWER
